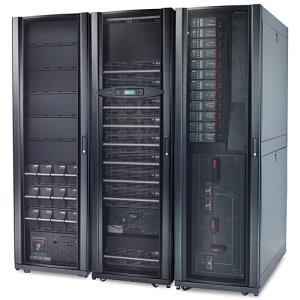

Symmetra PX 128kW Scalable to 160kW, 400V w/ Integrated Modular Distribution

Introduction

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With hot-scalable power, distribution and run-time this UPS scales with your data center up to 160kW/160kVA. Suitable for small to medium data centers or individual zones of large data centers

Includes: Network Management Card, Start-Up Service, User Manual.

Features

Output power capacity

128 kVA

Emergency Power Off (EPO)

Yes

Noise level

63 dB

Audible alarm(s)

Yes

Design

Product colour

Black

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 999.9 m

Non-operating altitude

0 - 15000 m

Certificates

Certification

CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111

Weight & dimensions

Weight

2.52 kg

Packaging data

Package weight

2.73 kg

Other features

Battery type

VRLA

Interface

2x SmartSlot

Output connections

1x Hard Wire 5-wire (3PH + N + G)

Dimensions (WxDxH)

1800 x 1070 x 1991 mm

Output voltage note

380, 400/415

Package dimensions (WxDxH)

2554 x 1210 x 2140 mm
