Product Details
Introduction

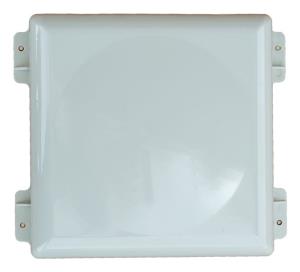

AP-ANT-28A is a dual-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.
Performance
Frequency band
2.4/5 GHz
Impedance
50 O
Horizontal beam width (2.4 GHz)
70°
Vertical beam width (2.4 GHz)
70°
Horizontal beam width (5 GHz)
56°
Vertical beam width (5 GHz)
56°
Antenna gain level (max)
7.5 dBi
Features
Antenna type
MIMO directional antenna
Antenna connector type
RP-SMA
Voltage Standing Wave Ratio (VSWR)
2:1
Housing material
Aluminium, Plastic
Operational conditions
Operating temperature (T-T)
-45 - 65 °C
Weight & dimensions
Width
190 mm
Depth
190 mm
Height
40 mm
Weight
700 g
