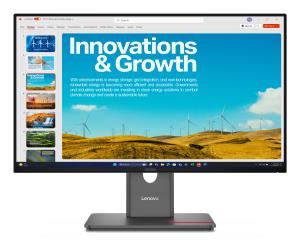

Desktop USB-C Monitor - ThinkVision P24QD-40 - 24in - 2560x1440 (QHD) - IPS

Display

Display diagonal

60.5 cm (23.8")

Display resolution

2560 x 1440 pixels

HD type

Quad HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

300 cd/m²

Response time

6 ms

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1500:1

Maximum refresh rate

120 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Response time (fast)

4 ms

Pixel pitch

0.2058 x 0.2058 mm

Pixel density

123 ppi

Viewable size, vertical

52.7 cm

Viewable size diagonal

29.6 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

Colour depth

8 bit

Colour gamut standard

Rec. 709

Colour gamut

99%

sRGB coverage (typical)

99%

Response time measurement type

GTG (Gray to Gray)

Contrast ratio (dynamic)

3000000:1

Display diagonal (metric)

60.5 cm

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Low Blue Light technology

Yes

Windows operating systems supported

Windows 10, Windows 11

Multimedia

Built-in speaker(s)

No

Built-in camera

No

Built-in microphone

No

Design

Product colour

Black

Colour name

Eclipse Black

Feet colour

Black

Front bezel colour

Black

Detachable stand

Yes

Ports & interfaces

Built-in USB hub

Yes

USB upstream port type

USB Type-B, USB Type-C

Number of upstream ports

2

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

140 W

HDMI

Yes

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

2

DisplayPort out quantity

1

DisplayPort out version

1.4

DisplayPort version

1.4

Headphone out

No

USB Type-C downstream ports quantity

1

Built-in KVM switch

Yes

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Adjustable height (max)

15.5 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-45 - 45°

Tilt adjustment

Yes

Tilt angle range

-5 - 23.5°

Plug and Play

Yes

Power

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

F

Energy consumption (SDR) per 1000 hours

14 kWh

Energy consumption (HDR) per 1000 hours

22 kWh

Power consumption (typical)

16.5 W

Power consumption (standby)

0.5 W

Power consumption (max)

210 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Weight & dimensions

Width (with stand)

539.8 mm

Depth (with stand)

190 mm

Height (with stand)

505.8 mm

Weight (with stand)

5.6 kg

Width (without stand)

539.8 mm

Depth (without stand)

45.3 mm

Height (without stand)

315.8 mm

Weight (without stand)

3.6 kg

Bezel width (side)

2 mm

Bezel width (top)

2 mm

Bezel width (bottom)

1.15 cm

Packaging data

Package width

730 mm

Package depth

123 mm

Package height

420 mm

Package weight

8.4 kg

Package type

Box

Packaging content

Stand included

Yes

Cables included

DisplayPort, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C

Quick start guide

Yes

DisplayPort cable length

1.8 m

Power cable length

1.8 m

Other features

Ethernet LAN data rates

2500 Mbit/s

Ethernet LAN (RJ-45) ports

1

Certification

ENERGY STAR Certified,TCO 10.0, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 95%
