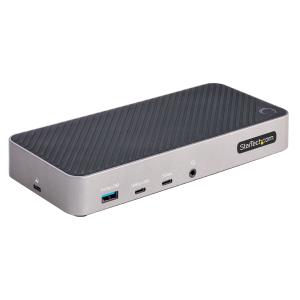

Triple Monitor Docking Station - USB-c Hdmi/dp Triple 4k USB-c Dock - 5x USB Hub - Gbe - 100w

Introduction

This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Triple-4K Video
This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.

Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink®), at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity?by expanding the display capabilities of your laptop.

Full-Featured Docking Station
Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:

- 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
- 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
- 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.

100W USB Power Delivery
The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.

For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment
Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB Power Delivery

Y

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

HDMI ports quantity

3

HDMI version

2.0

DisplayPorts quantity

2

DisplayPort version

1.4

Combo headphone/mic port

Y

Headphone outputs

1

Headphone connectivity

3.5 mm

USB Type-C DisplayPort Alternate Mode

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Wake-on-LAN ready

Y

Networking standards

IEEE 802.3ab

Performance

Card reader integrated

N

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

4096 x 2160 pixels

Maximum refresh rate

60 Hz

Cable lock slot

Y

Cable lock slot type

Kensington

Product colour

Grey, Silver

LED indicators

Power

Housing material

Plastic

Power

AC input voltage

100 - 240 V

Input current

2.5 A

Output voltage

24 V

Output current

5.41 A

Power consumption (typical)

15 W

Power plug type

Type M

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Linux operating systems supported

Y

Mobile operating systems supported

Android

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

0 - 85%

Weight & dimensions

Width

85 mm

Depth

190 mm

Height

30 mm

Weight

350 g

Packaging data

Package width

205 mm

Package depth

250 mm

Package height

50 mm

Package weight

1.1 kg

Packaging content

Cables included

AC, USB Type-C to USB Type-C

AC adapter included

Y

Quick start guide

Y

Logistics data

Products per master (outer) case

10 pc(s)

Master (outer) case width

280 mm

Master (outer) case length

430 mm

Master (outer) case height

290 mm

Other features

Chipset

DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0
